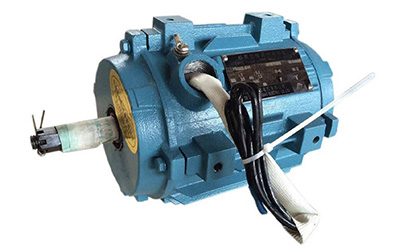

YYT2-H系列船用轴流风机用单相异步电动机
YYT2-H Series Single-phase Marine Asynchronous Motor For Axial Flow Fan
YYT2-H系列船用轴流风机用单相异步电动机是为船舶通风机设计的专用电动机。YYT2-H系列电动机为全封闭、鼠笼型电动机，该系列电动机性能优良、节能省电、结构可靠、通用性强。
YYT2-H series motors are specially designed for marine axial flow fan.This series motors are totally-enclosed, squirrel-caged type. the motors has advantage of high performance、energy-saving 、reliable structure and universally working .
工作环境条件(Operating Conditions)
环境温度(Ambient Temperature)：0～+45℃；
海 拔(Altitude)：<1000m；
额定频率(Rated Frequency)：50Hz ;
额定电压(Rated Voltage)：220V;
工作方式(Duty Type)：连续S1(Continuous)。
技术数据(Technical Data)
型号
Type
|
功率
Output (W)
|
电流
Rated Current (A)
|
转速
Rated speed (r/min)
|
效率
Effi. %
|
功率因数
COSφ
|
起动电流/额定电流
Locked-rotor current VS Rated current Ik/In
|
起动转矩/额定转矩
Locked-rotor torque VS Rated torque Tk/Tn
|
zui大转矩/额定转矩
Breakdown torque VS Rated torque
|
电 容
Capacitance（μF）
|
|
YYT2-631-2-H
|
180
|
4.88
|
2800
|
65
|
0.92
|
5
|
0.4
|
1.7
|
6
|
|
YYT2-632-2-H
|
250
|
5.16
|
2800
|
66
|
0.92
|
7
|
0.4
|
8
|
|
YYT2-631-4-H
|
120
|
4.26
|
1400
|
57
|
0.9
|
3.5
|
0.4
|
4
|
|
YYT2-632-4-H
|
180
|
4.58
|
1400
|
59
|
0.9
|
5
|
0.4
|
6
|
|
YYT2-711-2-H
|
370
|
9.18
|
2800
|
67
|
0.92
|
10
|
0.35
|
10
|
|
YYT2-712-2-H
|
550
|
9.76
|
2800
|
70
|
0.92
|
15
|
0.35
|
10
|
|
YYT2-711-4-H
|
250
|
3.44
|
1400
|
61
|
0.92
|
7
|
0.35
|
8
|
|
YYT2-712-4-H
|
370
|
3.88
|
1400
|
62
|
0.92
|
10
|
0.35
|
10
|
|
YYT2-80M1-2-H
|
750
|
10.76
|
2800
|
72
|
0.92
|
20
|
0.33
|
30
|
|
YYT2-80M2-2-H
|
1100
|
11.02
|
2800
|
75
|
0.95
|
30
|
0.33
|
30
|
|
YYT2-80M1-4-H
|
550
|
10.04
|
1400
|
64
|
0.92
|
15
|
0.35
|
16
|
|
YYT2-80M2-4-H
|
750
|
10.22
|
1400
|
68
|
0.92
|
20
|
0.32
|
16
|
|
YYT2-90S-2-H
|
1500
|
11.96
|
2800
|
76
|
0.95
|
45
|
0.3
|
30
|
|
YYT2-90L-2-H
|
2200
|
12.52
|
2800
|
77
|
0.95
|
65
|
0.3
|
30
|
|
YYT2-90S-4-H
|
1100
|
11.24
|
1400
|
71
|
0.95
|
30
|
0.32
|
16
|
|
YYT2-90L-4-H
|
1500
|
12.36
|
1400
|
73
|
0.95
|
45
|
0.3
|
30
|

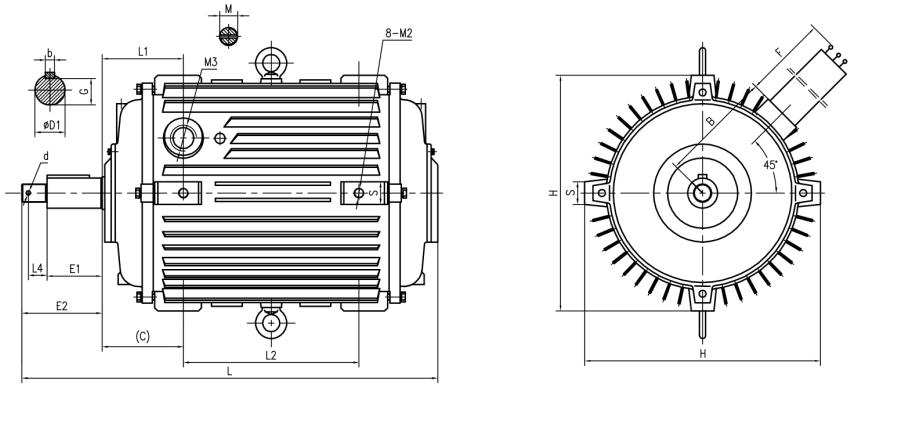

外形及安装尺寸
(Mounting and Overall Dimensions)
尺寸
机座号
|
ΦD1
|
b
|
G
|
E1
|
E2
|
L
|
C
|
L1
|
L2
|
F
|
L4
|
B
|
M
|
H
|
d
|
M3
|
8-M2
|
S
|
|
63
|
14
|
5
|
11
|
30
|
46
|
200
|
40
|
40
|
80
|
200
|
10
|
66
|
M8
|
140
|
2.7
|
3/4＂
|
M8深12
|
24
|
|
71
|
220
|
45
|
45
|
90
|
200
|
73
|
155
|
3/4＂
|
M8深14
|
24
|
|
80M
|
19
|
6
|
15.5
|
40
|
62
|
270
|
50
|
50
|
100
|
240
|
16
|
82
|
M12
|
175
|
3.2
|
3/4＂
|
M8深20
|
24
|
|
90S
|
24
|
8
|
20
|
50
|
78
|
295
|
56
|
56
|
100
|
240
|
20
|
90
|
M16
|
190
|
4.2
|
3/4＂
|
M10深20
|
28
|
|
90L
|
24
|
8
|
20
|
50
|
78
|
330
|
56
|
56
|
135
|
300
|
20
|
90
|
M16
|
190
|
4.2
|
3/4＂
|
M12深20
|
28
|
注：本产品样本中，所有产品数据参数仅供参考，如有疑问请与工厂联系，并以定货时提供给用户的确认资料为准。
Note：All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
|
